ESU 56498 plux16, MM/DCC/SX

Name: ESU 56498 plux16, MM/DCC/SX
SKU: ESU56498
Price: 100.00 EUR
Availability: OutOfStock

100,00 €

LokSound V4.0 «Universal sound with plux16 interface

Εξαντλημένο

Κωδικός προϊόντος: ESU56498 Κατηγορία: Decoders μηχανών/Accessories

Brands: ESU

Περιγραφή

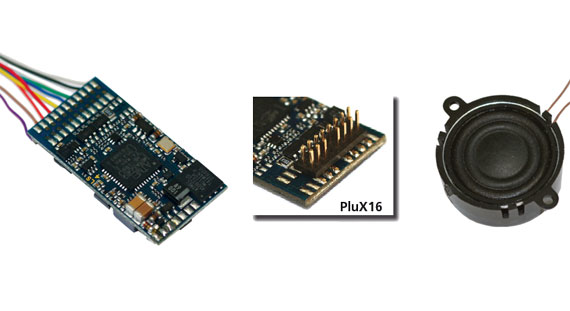

LokSound V4.0, with plux16 interface, «Universal sound – ready for programming».

Modes:	NMRA/DCC with 14, 28, 128 drive steps and automatic detection.
	DCC 2-digit & 4-digit addresses.
	Digital Motorola® (old and new), up to 28 drivesteps in Motorola®-mode. Up to 255 addresses in Motorola®-mode. 2nd address for function keys F5 to F8.
	Selectrix® operation with 31 drive steps. Extended functions for up to 8 function keys (suitable control station necessary).
	Analogue DC and AC operation (deactivation possible).
	Automatic recognition of the operating mode and the DCC drive step configuration.
	Supporting Lenz® LG100, Märklin®, Roco® braking modes. Supporting Lenz ABC brakes and Märklin® brake mode
	Reverse bit
	Intelligent programming mode with Märklin® 6021®. Suppoting programming modes for ROCO Lokmaus 2 and ROCO Multimouse.
	Connection to DC-, AC-motors with permanent magnet.
	Noiseless, motor saving control with 40 / 20 kHz pwm frequency
	Motor output protected against overload. Load control of the 5th generation (possible to deactovate) Dynamic Drive Control.
Function outputs:	4 amplified outputs
	max. 250mA load for each output
	Total current for all function outputs ca. 500mA. Outputs short circuit protected
	Free individual function mapping. Function keys F0 to F28
	2 logic outputs. Serial protocol for C-Sinus and light control
Sound unit:	8 (!) individual sound channels
	High power amplification with about 1.8 Watts
	Soundfiles in the internal flash memory modifiable
	Modes for Steam-, Dieselhydraulic- , Dieselelectric- , Electric locomotives, battery railcars, hybrid locomotives and so on
	32 MBit sound memory (up to 276 seconds)
Energy buffering:	Connecting for ESU PowerPack available
Communication:	Full RailComPlus® integration
Loudspeakers:	Impedance 4-8 Ohms, 4 Ohms recommended. Special speaker 4 Ohms, 23 mm diameter (with sound chamber) included in delivery
Dimensions:	30.3mm x 15.5mm x 5.5mm

We can deliver the decoder ready programmed with specific locomotive sound and data at an extra cost of €20. Please contact us by email at info@erail.gr for the necessary information.
