ESU 50352 – Speaker 10mm x 12mm x 3.5mm, square, 6 Ohm, with soundbox

Speaker 10mm x 12mm x 3.5mm, rectangular, 6 ohms, with sound capsule set

For difficult installation situations with limited space, especially in N-gauge models, our miniature speaker, which requires only 10mm x 12mm of space, is recommended.

This speaker was selected by our audio engineers after extensive testing because it offers a good compromise between acceptable bass reproduction and volume. This “dwarf” produces an astonishingly high sound pressure level – when combined with the appropriate sound capsule.

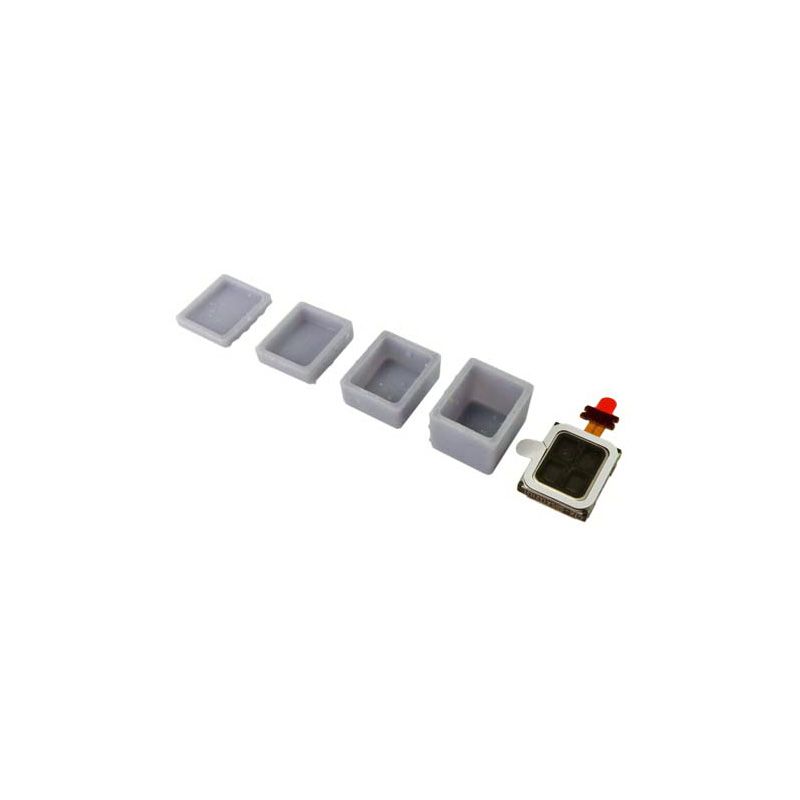

The set includes four sound capsules of different heights, resulting in a total height (with the speaker mounted) of 11mm, 8mm, 6mm, or 5mm.

Choose the largest sound capsule you can accommodate. The speaker itself features adhesive tape for easy, airtight installation.

The solder connection is made via a short piece of flexible circuit board.
