ESU 54614 – Lokpilot V4.0, 21pin , MM/DCC/SX

Name: ESU 54614 - Lokpilot V4.0, 21pin , MM/DCC/SX
Brand: ESU
SKU: ESU54614
Availability: OutOfStock

38,00 €

LokPilot V4.0, MM/DCC/SX, 21pin

Εξαντλημένο

Κωδικός προϊόντος: ESU54614 Κατηγορία: Decoders μηχανών/Accessories Brand: ESU

Brands: ESU

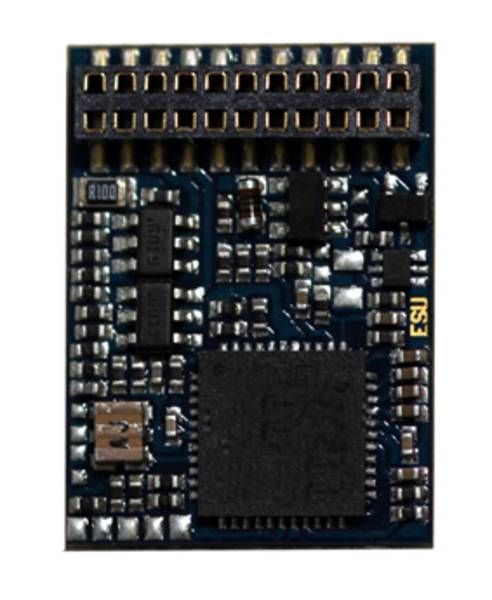

LokPilot V4.0, multiprotocol decoder (MM/DCC/SX), with 21MTC connector

Operational modes:	NMRA/DCC with 14, 28 and 128 speed steps, DCC RailCom®
	DCC 2-digit and 4-digit addresses (long and short addresses)
	Digital Motorola® (old and new), up to 255 addresses for Motorola® use
	Selectrix® operation
	Analog DC (de-selectable); Analog AC (de-selectable)
	Automatic recognition of operational mode and DCC speed selection
	Supports Lenz® LG100, Märklin®, Roco® braking section and ZIMO® HLU commands
	Supports the ABC braking mode
	Base-direction bit / stores operational status
	Intelligent programming mode with Märklin® 6021
	Switching speed and acceleration & deceleration key selectable
Throttle:	1.1 A continuous load
	Runs DC, coreless and AC motors (with permanent magnet)
	Silent, safe 40 / 20 kHz pulse width frequency motor regulation
	Motor output overload protection; Fifth generation back EMF (de-selectable)
Function outputs:	4 outputs
	21MTC connector version has two additional logic outputs
	250mA load per output
	500mA total load of all function outputs short-circuit-proof
	Free function allocation (function mapping)
Dimensions:	21.3mm x 15.5mm x 5.5mm
