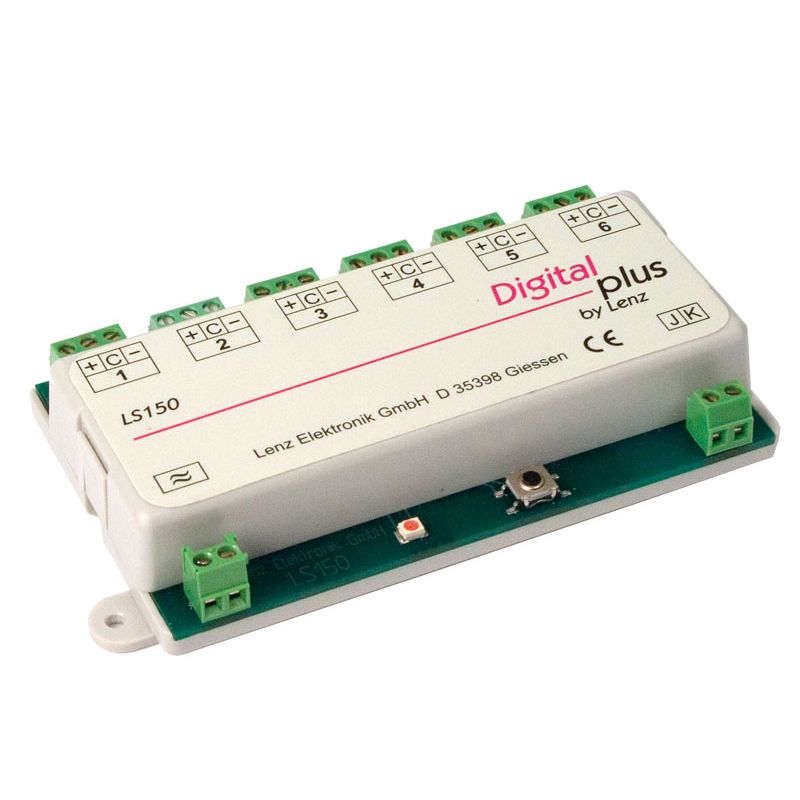

Accessory decoder LS150
Up to 6 switching devices with double-coil drives can be connected to the LS150.
The LS150 was designed specifically for the connection of double-coil point drives
and relays. Here, the AC output of the LS150 is particularly advantageous as
double-coil drives switch very reliably.
Motorised point drives can also be connected to the LS150; this connection
requires (depending on the drive used) an additional 2 simple diodes.
Pulse Duration can be set for every output.
Physical switches can also be connected in parallel on every output.
Range of addresses 1 – 1024
Max. voltage on AC input 16 V eff
Max. voltage on input J, K 24 V
Output voltage approx. 1 V less than voltage on AC input
Max. power on outputs: up to 1 sec pulse duration 3 A, more than 1 sec pulse duration 1 A
Pulse duration of outputs settable from 0.1 to 10 sec
Minimum power consumption of output 10mA
Dimensions 120 x 60 x 20 mm
