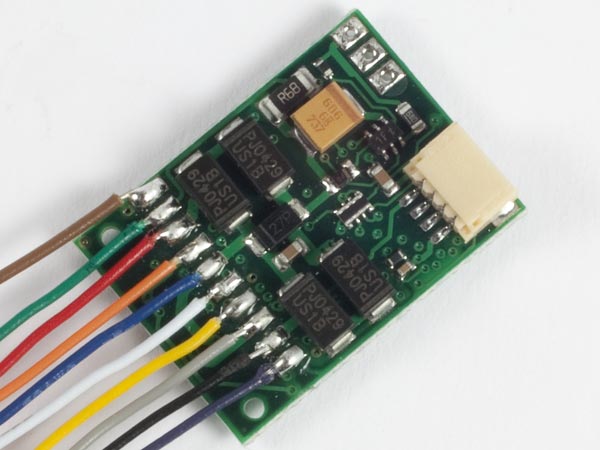

Lenz 10433.01 – Decoder Gold+, 1,0/1,8A, 8pin, ABC, SUSI

Locomotive decoder “Gold+” continuous load capacity 1000 mA, 5 function outputs, with interface NEM652 (function outputs 3 and 4 are brought out as cables), ABC, USP, Railcom, S.U.S.I. interface

Properties:
– SUSI interface for sound decoder control
– RailCom
– high freq. Motor control
– Shunting mode
– 2- or 4-digit addresses, up to 128 speed steps
– Free assignment of the function outputs to the function keys of the digital system
– Multiple traction
– Vmin, Vmax and Vmid adjustable (among others)
– Protection against short circuit, overload and excess temperature
– ABC – automatic Stop in front of signals
– constant braking distance
– Shuttle control
– Continuous motor current (A) 1A, 1,8A peak.
– 4 function outputs, each 500mA loadable. Function outputs total: 500mA
– Function outputs can be switched time-controlled (e.g. for digital coupling)
– Max. Long-term load capacity of the entire decoder 1A
– Interface connector 8pin
– Dimensions 22.8 x 16.7 x 4.9mm
